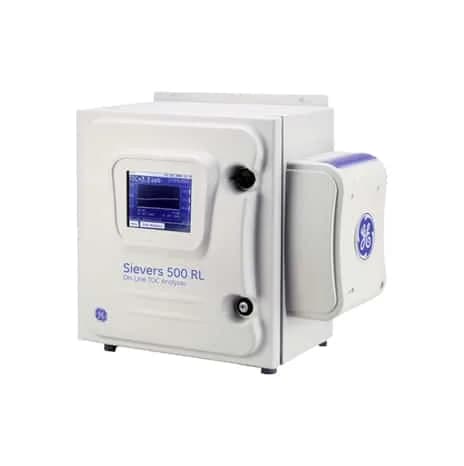

Analyseur de COT 500RL

Constructeur: Veolia
Réf. HTTS: HTS-SA-0295
Réf. HTDS: ANALYSEUR DE CARBONE ORGANIQUE TOTAL 500RL
Division: Sciences Analytiques

Description

L’analyseur de Carbone Organique Total 500RL est l’instrument de référence pour les analyses en ligne dans le domaine pharmaceutique. Grâce à sa technologie breveté basée sur la mesure de conductivité après membrane de sélective, et sans réactif, le 500RL apporte fiabilité totale pour la mesure d’eaux purifiées ou ultra-pure (eaux ppi). Plus qu’un simple analyseur, le 500RL a été conçu pour apporter aux laboratoires la capacité de libération des eaux pharmaceutique en temps réel tout en respectant la conformité avec l’assurance qualité, et les différentes normes (Ph. Eur 2.2.44 ; USP 645 ; USP643). C’est aussi un analyseur polyvalent, idéal pour la validation du nettoyage en ligne, et intégrant les protocoles de validation.

Leader mondial de l'analyse COT en ligne dans les eaux pures et ultra-pures

Caractéristiques

Mesure de conductivité après membrane selective
Mesure En-Ligne

Spécifications techniques

Power: 100–240 ±10% VAC, 50 W, 50/60 Hz
Inputs: One isolated binary input
Weight: 16.9 kg (37.2 lb)
Display: Backlit Quarter-VGA touchscreen display
Outputs: Three isolated 4-20mA outputs, one Serial (RS-232), one USB port,
Sievers: 500 RL
3. Ozone: 50 ppb continuous, conductivity accuracy ±0.02 μS/cm < 1.0 μS/cm, ±2% >1.0 μS/cm; 200 for 2 hours once/day, conductivity
Accuracy: ± 5% of measurement
overview: pharmaceutical applications
Precision: < 1% RSD or 0.03 ppb as C, whichever is greater
Ease of Use: suitability, linearity functionality, and Sievers DataGuard
Dimensions H: 41.9 cm (16.5 in); W: 48.3 cm (19 in); D: 27.4 cm (10.8 in)
Linear Range: 0.03 to 2,500 ppb as C
Interferences: Insensitive to organic heteroatoms
Analysis Modes: On-Line, On-Line Averaged, On-Line Timed
Display Readout: 3 significant digits
Sample Pressure: Up to 100 psig
Maximum Altitude: 2,300 m (7,546 ft)
Mode d’analyse: en ligne, en ligne moyenné, en ligne limité dans le temps.
Pollution Degree: 2 (normally only non-conductive pollution)
External Flow Rate: Minimum 50 mL/min
Sample Temperature: 1° C to 95° C (34° F to 203° F)
Ambient Temperature: 10° C to 40° C (50° F to 104° F)
Ozone Compatibility3: Maximum 200 ppb as O3
Calibration Stability: Typically stable for 12 months
Safety Certifications: ETL, CE
Conductivity Precision: < 0.25% RSD
Average and timed modes: 0.5, 1, 4, 8, or 24 hours
Raw Conductivity Range4: 0.01 to 35 μS/cm
Conductivity Accuracy3,4: ± 0.005 μS/cm or ± 1%, whichever is greater
Installation/Overvoltage: Category II (protects against transients present in Category II power)
specific customer needs.: (USP) <643>, European Pharmacopeia (EP) 2.2.44
Maximum Relative Humidity: Up to 95%, noncondensing
Maximum Sample Conductivity: 25 μS/cm at neutral pH
Analysis Time Continuous mode: 6 minutes
IP Rating Environmental Enclosure: IP 45
tion and system suitability grab samples: the standard
TOC Analyzers, and offers a range of options meet: TOC analysis for compliance with US Pharmacopeia
nates false positive and false negative readings to: upgrade options
tions. The reagentless 500 RL provides the superior: of ICHQ2(R1) enables the 500RL to be the instrument of
The Sievers 500 RL On-Line Total Organic Carbon (TOC): The Sievers 500 RL is designed to deliver science-
ultrapure water for pharmaceutical and power applica-: floor. The ability to be fully validated to the standards
Analyzer provides continuous monitoring of organics in: based risk management capability to the production
analytical accuracy and performance found in all Sievers: record for Real Time Release Testing. It provides on-line
readings not within spec, recovery time to in-spec readings: 2 hours
