Solution de mesure mobile ISO-CART-II

Constructeur: Ortec
Réf. HTTS: HTS-NUC-0019
Réf. HTDS: SOLUTION DE MESURE MOBILE ISO CART II
Division: Nucléaire & Radioprotection

Galerie et schémas techniques

Solution de mesure mobile ISO-CART-II - Image 1

Description

ISO-CART 2 est la solution mobile de mesure (Mobile Assay System) dédiée aux applications de décontamination. La gamme ISO-CART II comprend trois solutions : ISO-CART II 85 : Chariot de transport et d’orientation ISCO-CART II, le spectromètre HPGe IDM-200-V avec refroidissement intégré, le logiciel ISOPLUS, le collimateur modulaire ISO-2-IDM-SHD ISO-CART II avec refroidissement azote: Cette solution comprend un système de transport adapté, un détecteur HPGe à choisir (GEM 25 à GMX80) un dewar de 3 ou 7 litres, le MCA DigiDart et le logiciel ISOPLUS ISOCART II avec Detective : Système de transport adapté, Detective ou Micro-Detective et logiciel ISOPLUS

Permet de réaliser la spectrométrie gamma en dehors du laboratoire

Caractéristiques

Pour la spectrométrie gamma de terrain
Chois du détecteurs
Choix de refoidissement
Inclus le MCA et le logiciel ISOPLUS

Spécifications techniques

Model: Description
SHD-1: 5/8-inch Lead Shield/Collimator, copper lined. For use with HPGe
SHD-2: Tungsten Shield/Collimator
SHD-3: Heavy Duty Lead Shield (1.8" thick) for high backgrounds
ISO-BOX: Airworthy “roll-in” system transportation box for complete ISO-CART (detector ships in its own crate), includes
ISO-CAL: Point-source calibration at the factory
ISO-DCC: Carrier for detector/collimator
ISO--DCC: Detector-Collimator Carrier slide and plate
ISO-CART: Cart with Detector/Collimator Carrier only (collimator not included)
ISO-CASE: Transportation case for digiDART, laser meter, and laptop.
SO-ADAPT: Mounting Adapter screws and bar for Detective-EX or Detective-DX
IDM-200-V: Integrated HPGe spectrometer.
ISO-DEWAR: STD50L dewar, WD/50 withdrawal device, and TL-6 6-ft. transfer line
ISO-SCALE: Platform scale with indicator floor stand
SHD-2-SUB: Substitute SHD-2 for SHD-1 in system
SHD-3-SUB: Substitute SHD-3 for SHD-1 in system
Turntable: Diameter: 30 in.; Rotation Speed: 1 rev/min; Capacity: 1000 lbs.; Height: 9.5 in.
detector.: DCC with TSP-ISO-SHLD.
ISOPLUS-BW: ISOTOPIC Advanced Gamma-Ray Waste Assay Analysis Software
ISOPLUS-GW: Documentation for ISOTOPIC
ISOPLUS-NW: ISOTOPIC Network Copies
ISOPLUS-UW: Update to ISOTOPIC

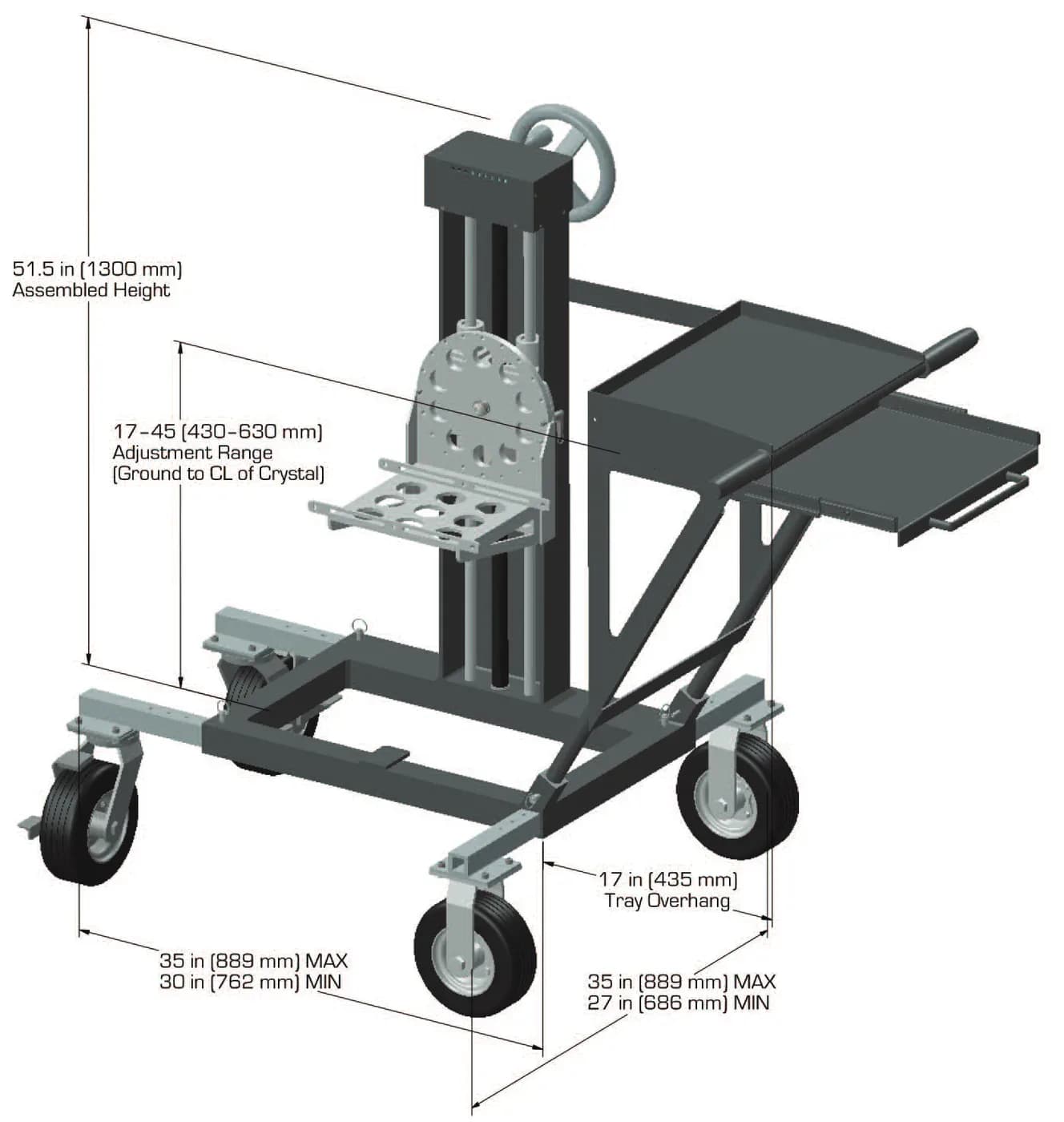

dimensions: 1324 mm (52 in.) L x 889 mm (35 in.) W x1300 mm (51.5 in.) H. Weight: 63.5 kg
ISO-CART 85: Chariot de transport ISOCART II, détecteur IDM-200-V, collimateurs,PC, ISOPLUS et étalonnage usine
ISO-CART-II: Cart only (no Detector/Collimator carrier (DCC) or collimator).
ISOPLUS-2YW: 2 year update subscription for ISOTOPIC
ISOPLUS-3YW: 3 year update subscription for ISOTOPIC
ISOPLUS-4YW: 4 year update subscription for ISOTOPIC
ISOPLUS-5YW: 5 year update subscription for ISOTOPIC
Laser Meter: The Laser Meter accurately determines the distance from the detector endcap to the
TSP-ISO-DCC: Carrier slide/plate and mounting adapter screws and bar for trans-SPEC-DX-100T and TSP-ISO-SHLD.
ISO-ADAPT100: Mounting Adapter screws and bar for Detective-EX-100T, Detective-DX-100T, or trans-SPEC-DX-100T
ISO-WIRELESS: Complete set add-ons to replace PC-to-digiDART wiring by wireless networking. Includes remote computer.
ISO-2-IDM-SHD: Modular collimator kit for use with IDM-200-V, includes 1 each ISO-2-IDM-FOV-2 2" Steel Field of View Collimator, 1
ISO-BACKSHIELD: Removable backshield for PopTop detectors
ISO-CART azote: Système de transport adapté, détecteur à choisir, dewar, DigiDart MCA , ISOPLUS et calibration usine
ISO-CART-85-PC: Complete ISO-CART-85 System, Factory Calibrated. Includes ISO-CART-II, IDM-200-V-ISO-2-DCC Detector/Collimator
ISO-LASERMETER: Laser Range Finder
SHD-1 5/8-inch: Lead Shield/Collimator, copper lined
TSP-ISO-SHLD-2: Lead Shield, 2" long x 2" thick. For additional collimation with TSP-ISO-SHLD-3.
TSP-ISO-SHLD-3: Lead Shield, 3" long x 2" thick. Provides 0.5" collimation. For use with trans-SPEC-DX-100T.
ISO-2-IDM-FOV-2: 2" Steel Field of View Collimator for use with IDM-200-V, Sn/Cu lined.
ISO-2-IDM-FOV-4: 4" Steel Field of View Collimator for use with IDM-200-V, Sn/Cu lined.
ISO-2-IDM-FOV-6: 6" Steel Field of View Collimator for use with IDM-200-V, Sn/Cu lined.
ISO-2-IDM-SHD-2: 2" deep lead sectional shield for FOV collimator. 1" wall thickness.
ISO-ADAPT-MICRO: Mounting Adapter screws and bar for Micro-Detective or Micro-trans-SPEC
FlexibleFlexible: • CLOSE geometry measurements for “on-endcap” applications such as bottle counting.
ISO-CART-85-NOPC: ISO-CART-85 System Without PC or Factory Calibration. Includes ISO-CART-II, IDM-200-V-ISO-2-DCC
ISO-2-IDM-SHD-EXT: Optional Bottle Counting Extension for ISO-2-IDM-SHD. Includes 6 each 1-liter bottles.
ISO-TURNTABLE-110: Turntable for drum rotation. Capacity = 445 kg (1000 lb). 110 V, 50 Hz.
ISO-TURNTABLE-240: Turntable for drum rotation. Capacity = 445 kg (1000 lb). 240 V, 60 Hz.
ISOCART-GEM25-DDD: ISO-CART Mobile Assay System incorporating GEM25 detector
ISOCART-GEM40-DDD: ISO-CART Mobile Assay System incorporating GEM40 detector
ISOCART-GEM60-DDD: ISO-CART Mobile Assay System incorporating GEM60 detector
ISOCART-GEM80-DDD: ISO-CART Mobile Assay System incorporating GEM80 detector
ISOCART-GMX25-DDD: ISO-CART Mobile Assay System incorporating GMX25 detector
ISOCART-GMX40-DDD: ISO-CART Mobile Assay System incorporating GMX40 detector
ISOCART-GMX60-DDD: ISO-CART Mobile Assay System incorporating GMX60 detector
ISOCART-GMX80-DDD: ISO-CART Mobile Assay System incorporating GMX80 detector
ISO-CART Detective: Système de transport pour collimateur et détective, logiciel ISOPLUS
ISO-LSRMTR-ADAPT-1: Lasermeter adapter for SHD-1 shield
ISO-LSRMTR-ADAPT-2: Lasermeter adapter for SHD-2 shield
ISO-LSRMTR-ADAPT-3: Lasermeter adapter for SHD-3 shield
ISO-TURNTABLE-OPT2: Wireless On/Off via hand-held remote
ISO-TURNTABLE-OPT3: Power Cord Extension from standard 6 ft. to a maximum of 75 ft.
ISO-TURNTABLE-OPT4: Hardwired Switch Cable Extension up to 75 ft.
ISOCART-GEM100-DDD: ISO-CART Mobile Assay System incorporating GEM100 detector
ISOCART-GEM120-DDD: ISO-CART Mobile Assay System incorporating GEM120 detector
PracticalPractical: HPGe detectors (ISO-CART-85 assay systems).
System Description: Complete ISO-CART system includes: pneumatic-tired CART, fitted with 5/8-inch copper-lined lead collimator, carrier
IDM-200-V-ISO-2-DCC: Detector-Collimator Carrier for IDM-200-V
(30.5 in.) D. Weight: 27.27 kg (60 lbs).
DefendableDefendable: • Third party “round-robin” testing to validate results accuracy.
ISO-TURNTABLE-OPT1-2: Increase in turntable RPM from 1 RPM to 2 RPM
ISO-TURNTABLE-OPT1-3: Increase in turntable RPM from 1 RPM to 3 RPM
• Digitally stable: consistent answers for long counts, changing count rates and
(uncollimated detector: M-1 methodology)
Large gamme d’options: Collimateurs, laser de mesure de distance, module de rotation du détecteur…
SHD-1 Shield/Collimator: The standard collimator is 1.6 cm (0.625 in.) thick and 20.3 cm (8 in.)
SHD-2 Shield/Collimator: The medium-duty collimator is 1.3 cm (0.5 in.) thick and 20.3 cm (8 in.)
SHD-3 Shield/Collimator: The heavy-duty collimator is 4.6 cm (1.8 in.) thick and 20.3 cm (8 in.) long.
4.7 cm (7.4 x 2.8 x 1.9 in.). Accuracy: 3 mm.
ISO-DCC-X Carrier for X-COOLER detector (Caution: ISO-CART should not be moved while X-COOLER is in use.)
small volume assembly. Complete shield dimensions: 26.68 cm (10.5 in.) H x 2 cm (8 in.) W x 77.5 cm
(10.4 in.) H x 20 cm (8 in.) W x 77.5 cm (30.5 in.) D. Weight: 16.82 kg (37 lbs).
0.38 m (15 in.) to 1.2 m (48 in.) H. Pivot mechanism orientation: 0 to 180°. Overall maximum
specially designed cart hardware transport system carries all the components: HPGe detector, shield and collimator,
