Scanner Rayons X DYMOND 80

Constructeur: Dylog
Réf. HTTS: HTS-CP-0007
Réf. HTDS: SCANNER RAYONS X DYMOND 80
Division: Contrôle Produit

Galerie et schémas techniques

Schéma

Description

Elle offre à la fois, fiabilité et ergonomie, et établit de nouveaux standards en matière de détection RAYON X. Une solution qui vous apporte à la fois performance et optimisation de la production.

Une solution compacte qui vous apporte à la fois performance et optimisation de l'espace.

Caractéristiques

Solution compacte et performante

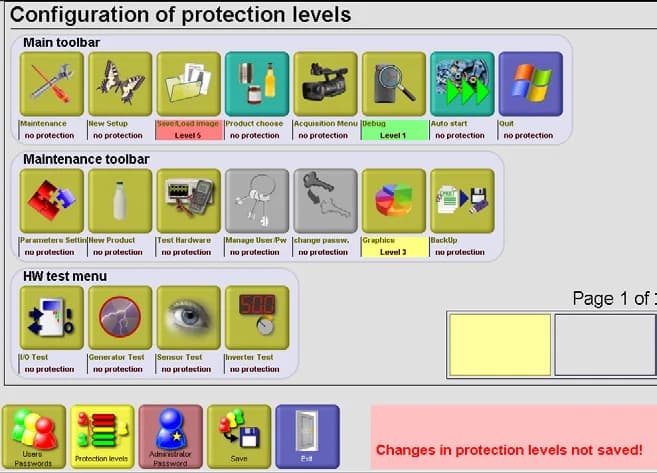

Interface homme machine ergonomique
Possibilité de mise en réseau
Système certifié

Spécifications techniques

HMI: Touchscreen 15"
Power: 100W or 200W
System: can work in a wide range of temperatures without
Cooling: 500W air conditioner (IP34 or Nema4x-IP65)
Curtains: Unleaded FDA approved
USB port: yes - external
Languages: English, Italian, French, German, Spanish, Norwegian, Chinese, Hungarian, Polish, Korean
Belt speed: 10 – 80 m/min (drum motor)
INSPeCTION: window so you can see the products as they move
Network port: Ethernet
Power supply: 230 VAC ±10% ( standard )
Taille Tunnel: 370 mm (l) x 192 mm (h)
Certifications: CE, UL
Compressed air: 5.5 -6.9 bar
Radio protection: FDA CFR 21 part 1020,40
Sensor scan rate: up to 2800 lines/second
Relative humidity: 20% - 90% (non-condensed)
Sensor resolution: 0.8 or 0.4 mm
Dimensions (lxHxL): 1 500x 1 560 x 770 mm
Operating temperature: +5°C to +40°C with air conditioner
Safety switches - interlock: SIL 3. Category IV PL E, magnetic X-ray Inspection System
machines adapt to the ever more: and SENSOR) can be removed simply and quickly
and intuitive software, let Dymond: The main components (BELT, CURTAINS, GENERATOR
than that of the inspected products: or partial weight of the product can be checked
International Protection Rating (IP): IP34 with standard air conditioner, IP65 with Nema4x air conditioner
detects contaminants (in any type of: parallel image processing provide clear, high-contrast
container or package) and verifies the: images, without noise, and with faster scanning
