Refroidisseurs cryoélectriques pour HPGe

Manufacturer: Ortec
HTTS ref.: HTS-NUC-0072
HTDS ref.: ICS REFROIDISSEUR CRYO ELECTRIQUE INTEGRE POUR HPG
Division: Nucléaire & Radioprotection

Gallery and technical drawings

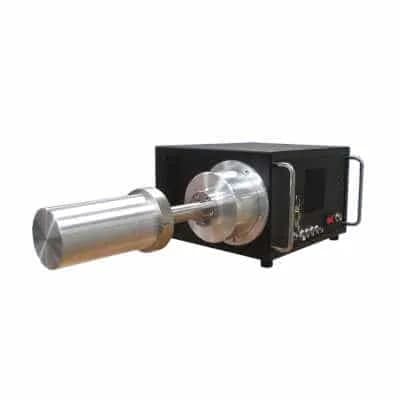

Refroidisseurs cryoélectriques pour HPGe - Image 1

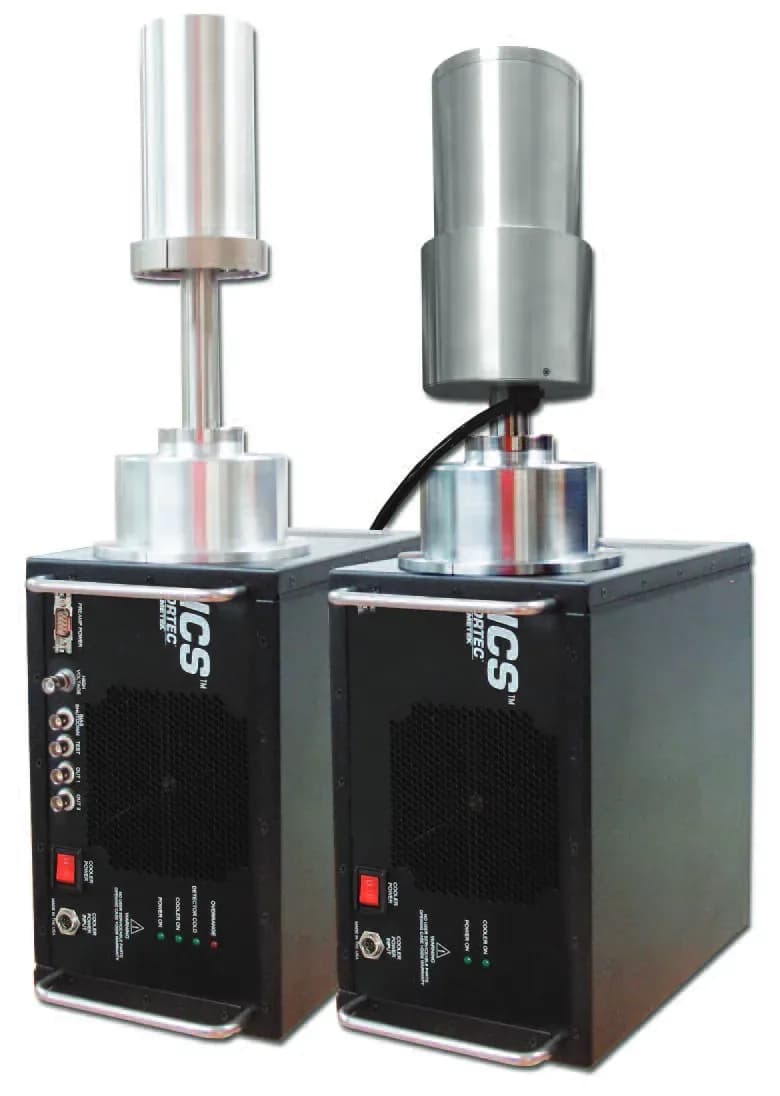

Refroidisseurs cryoélectriques pour HPGe - Image 2

Description

Dernier développement né de la fusion ORTEC et SunPower, l’ICS (Integrated Cryocooling system) révolutionne la spectrométrie gamma. La technologie de refroidissement Stirling associée à une nouvelle technique active de suppression des vibrations (AVC) physiques et sonores nous permettent de vous apporter : L’ICS se place comme un élément indispensable de toutes mesures de spectrométrie Gamma. HTDS vous propose trois modèles de refroidisseurs:

Supprimez l'azote liquide de votre laboratoire

Key features

Performances : Résolution équivalente à l’azote en utilisation -10° à 40°
Comptabilité : Tous les détecteurs GEM, GMX et PROFILE en multi-orientation et PopTop inclus
Economique : Faible consommation électrique (70W), absence de maintenance et très silencieux (55 dB)
Garantie 2 ans avec un MTTF> 200 000 heures

Technical specifications

mm: 8 250 282 282 309 323
(in): (0.3) (9.8) (11.2) (11.2) (12.2) (12.7)
Dim.: Unit Tol.
Note: Internal and External preamp configurations are with reference to the cooler enclosure. “Internal” means the preamp is
Type: C and S PROFILE C and S PROFILE S and C and SP
Model: Description
0–35: 25–65 120–150 0–35 25–65 60–110 120–150
Cooler: AMETEK Sunpower with AVC™ (active vibration
ICS-LL: mm 3 127, 140,152, 165, 178, 191, 203, 216, 229, 241, 254, 267,
Weight: 40 lbs. (18 kg) excluding the detector. 28.5 lbs. (12.7 kg) excluding the detector
mm 0.3: 101 101 127 mm 0.3 101 101 114 127
Benefit: Feature
Caution: Since the ICS must be installed into a shield from below, the user must ensure the shield
ICS-LLE: mm 3 088, 101, 114, 126, 139, 152, 164, 177, 190, 202, 215, or
Cryostat: P P P
Humidity: non-condensing.
LN2 Free: P P P P P P
Warranty: 2 years on cryocooler, internal controller and
features: the hardened cryostat which eliminates the need to fully thermal cycle the detector in the event of a partial warm-
Attribute: Environmental Labs Plants Education Field Remediation Health Physics and Safeguards
(in) (0.2): (8.9) (8.9) (8.9) (in) (0.2) (9.6) (10.1) (11.1) (11.1)
CFG-ICS-P4: Integrated Cryocooling System for PopTop Detectors.
Connectors: ICS only (connectors on front panel) None (does not include detector cable set)
ICS-LLE mm: 3 050, 063, 075, 088, 101, 114, 126, 139, ICS-LLE mm 3 050, 063, 075, 088, 101, 114, 126, 139,
ICS-STAND2: Vertical Positioning Stand for any model ICS
(in) (0.01): (4.0) (4.0) (5.0) (in) (0.01) (4.0) (4.0) (4.5) (5.0)
Commercial,: Nuclear Power Waste
Cooler Life: >200,000 hours.
Maintenance: No maintenance is required.
Performance: TM
Compact Size: P P P P
Typical HPGe: GEM, GMX, PROFILE GEM, GMX, GEM, GMX, GEM, PROFILE S GEM, PROFILE S
Audible Noise: Less than 55 dBA at 1 meter fully operational,
ICS and ICS-E: ICS-P4
Backup Battery: No built-in battery. ICS is compatible with
Dim. Unit Tol.: Dim. Unit Tol.
Government and: and Industrial Research and Management and Homeland Security
Molecular Sieve: No Yes
Quiet Operation: P P P
specifications): specifications)
Auxiliary Cooling: Internal fan (vented).
Electrical Supply: 100–240 V AC (50/60 Hz) auto ranging.
Hardened Cryostat: Yes No
PopTop Compatible: No Yes
(in) (0.01) (2.75): (3.0) (3.25) (3.75) (4.25)
(in) (0.01) (2.95): (3.45) (3.45) (3.95) (4.45)
HPGe Compatibility: All ORTEC GEM, GMX and PROFILE detectors.
• Large Detector: 8 hours 14–18 hours
• Small Detector: 5 hours 6–8 hours
PROFILE S Detectors: PROFILE M, C, and F Detectors
Stand Compatibility: Stand not included. Optional stand (ICS-STAND2) is
in this endcap size: in this endcap size
with cooler running: with cooler running
• Medium Detector: 6 hours 12–14 hours
Preamp Configuration: Internal (ICS) or External (ICS-E). See note for External
All-Attitude Operation: Yes
Endcap Model (dia. mm): -70 -76 -83 -95 -108
resolution degradation: resolution degradation
detector performance in: No change or lower resolution
% Efficiencies available: % Efficiencies available
Existing ORTEC detectors: resolution degradation
are relative to existing: Return to Factory Service Upgrade.* PopTop Detector with X-COOLER
Compatible Endcap Windows: Aluminum, Carbon Fiber, Beryllium.
@ <100 keV energy up to 10%: @ <100 keV energy up to 10%
2 LED lights indicate status: power ON/OFF,
4 LED lights indicate status: power ON/OFF,
Low/Reduced Background Option: Yes
Environmental Temperature range: –10°C to 40°C.
152, 164, 177, 190, 202, 215, or 228: 152, 164, 177, 190, 202, 215, or 228
Resolution (warranted at room temperature): See Spectroscopic Performance (page 4).
Specify length. Choose from 025, 031, 037,: Specify length. Choose from 025, 031, 037,
Status Display ICS only 1 LED light indicate status: power ON/OFF
Typical Power Consumption 70 W typical, 130 W maximum.: 80 W typical, 200 W maximum.
