Logiciel de spectrométrie GammaVision V8

Manufacturer: Ortec
HTTS ref.: HTS-NUC-0014
HTDS ref.: LOGICIEL DE SPECTROMETRIE GAMMAVISION V8
Division: Nucléaire & Radioprotection

Gallery and technical drawings

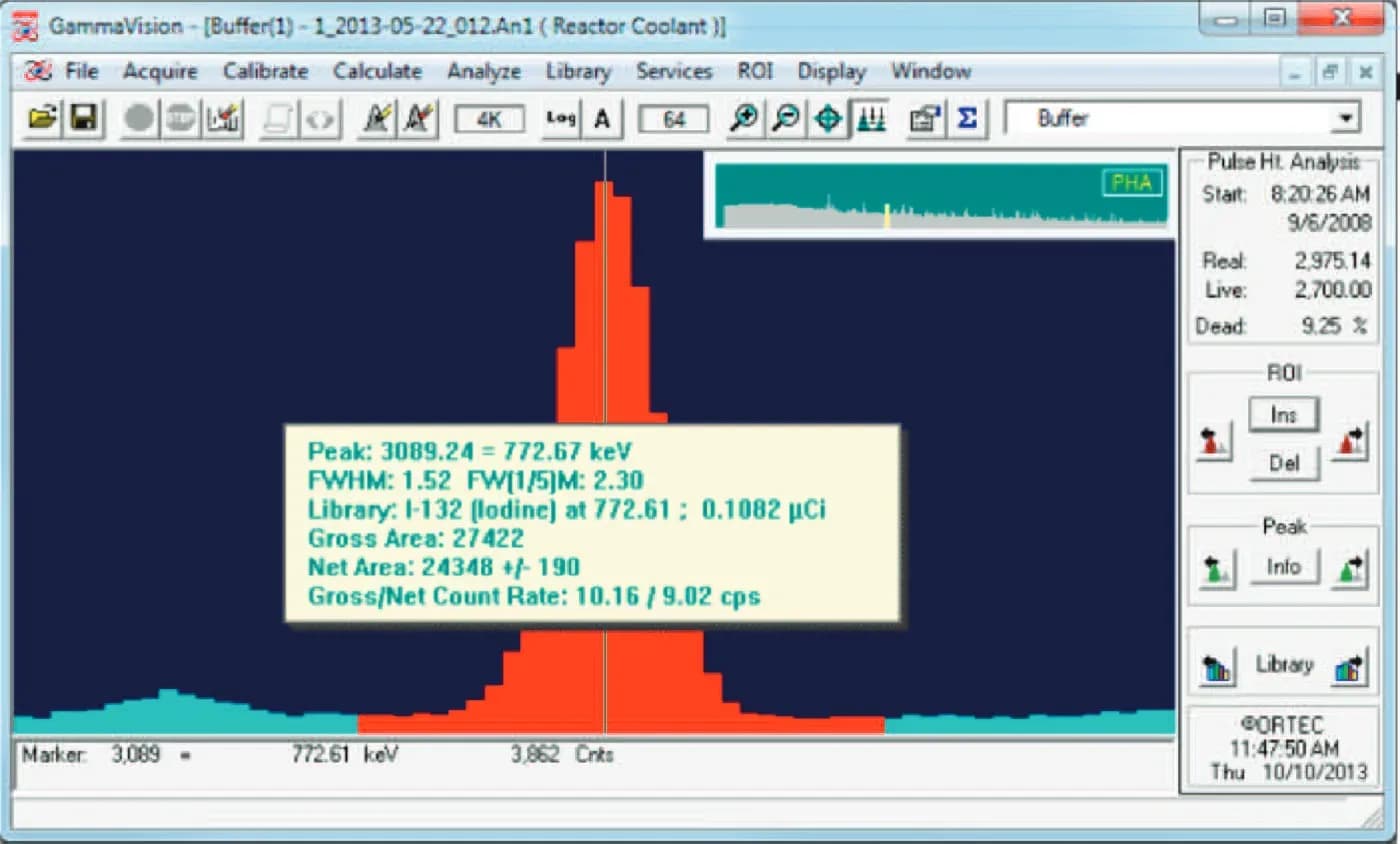

Logiciel de spectrométrie GammaVision V8 - Image 1

Description

GammaVision est le logiciel de spectrométrie gamma le plus connu et distribué sur le marché mondial. Il regroupe un ensemble de modules qui vous permettront : De contrôler vos spectromètres de marque ORTEC (en direct ou en réseau jusqu’à 250 détecteurs) De calibrer vos spectromètres gamma (4 types de calibration et 5 méthodes) De générer des rapports d’assurance qualité (ANSI N13.30 et ANSI 42.14 supportés) D’afficher et d’analyser vos spectres en vous apportant les résultats les plus précis D’automatiser vos mesures

Logiciel de déconvolution Gamma

Key features

Acquisition des spectres par séquence de mesure
Analyse jusqu’à 8 spectres gamma HPGe ou NaI en simultané
Assurance Qualité
Gestion bibliothèque intégrée et rapport crystal report

Technical specifications

NOTE: A66-BW and associated models include High and Low Resolution Analysis Engines for HPGe and Scintillator systems.
Model: Description
A11-BW: CONNECTIONS Programmer’s Toolkit with ActiveX™ Controls
A44-BW: Report Writer Option for GammaVision
A66-BW: GammaVision Gamma Spectroscopy Software for Windows. Includes standalone or first network copy and binary use
A66-GW: Additional Hard Copy Documentation for GammaVision.
A66-NW: GammaVision Single Use Network Copy. Requires current version of A66-BW.
A66-UW: GammaVision Update from A66-B32, A66-BW, or A66-NW to latest version of GammaVision.
A66-VW: GammaVision V&V Test Results and Certificate of Validation.
A49-B32: DataMaster Spectrum File Conversion
A66-2YW: 2 year subscription for A66-BW
A66-3YW: 3 year subscription for A66-BW
A66-4YW: 4 year subscription for A66-BW
A66-5YW: 5 year subscription for A66-BW
A66-BVW: GammaVision software (A66-BW) with Test Results (A66-VW).
A66-UVW: GammaVision software update (A66-UW) with Test Results (A66-VW).
C53-B32: Nuclide Navigator® III Master Library
Example: For a three-station network, order one copy of A66-BW and two copies of A66-NW.
LVIS-B32: Counting Laboratory Application Manager
– ENV32: Complex spectra with a large list of possible nuclides
– GAM32: Simple spectra with a large list of possible nuclides
– NAI32: Low Resolution (Scintillator) spectrum analysis
– NPP32: Complex spectra with a small or well-characterized nuclide mix
– ROI32: WAN32 with the addition of user-defined regions of interest
– WAN32: Simple spectra with a small list of possible nuclides
GammaVision: 8
ProcessProcess: • Automation Scripting for Consistent measurement processes
γ 19 MDA Methods: ORTEC MDA, ORTEC Critical Level, Suppress MDA, KTA Rule, Japan 2-Sigma Limit, Japan 3-Sigma
DefendableDefendable: • Quality Control Reports, Trending, and optional instrument lock-out on violations
CalibrationCalibration: Quality AssuranceQuality Assurance
γ Analysis Parameters: Peak Search Sensitivity, Maximum Peak Uncertainty, Peak Match Width, Fraction Limit and Key
γ Standards Compliant: ISO/DIS 11929, ANSI N42.14, ASTM E181
• Multiple Languages: English, German, Chinese, and French
Hardware ControlHardware Control: AutomationAutomation
– User-Defined Spectrum Properties: Colors, Data Points
